Bended Glass Washing Machine(Brush Version)

Short Description:

The type of glass washing machine is for washing bent windshield glass (normal one or coated one).

For windshield production, two pieces of glass are separated by powders when bending inside furnace. After bending is completed, the two glass pieces are detached and the powders are, generally, removed by vaccum cleaners inside a climatic control room where PVB is assembled immediate after powders removal. This process requires a lot of work load and labour forces. If vacuum cleaner is inefficient, dusts fly everywhere inside assembly room. If necessary, autoglass, such as windshield, backlites and sidelites are also washed and dryied prior to packing.

Bended glass washing machine is usually placed  after  loading line and before PVB assembly line.

Main function is to remove isolation powder, dust, glove print, pressure mark, etc, dry thoroughly to get glass ready for laminating.






Product Detail

Video

Product Tags

Main technical specifications
Glass size: Max 1800 x 2000 mm Min 1000 x 500 mm
Thickness: 1.6-3.2mm
Working height: 1000±50mm(off ground)
Glass flow: Cross feed/ Wing down
Depth of bend: Max 250mm, Min 50mm
Cross curvature: 0-50mm
Conveying  speed: 3-10m/min   adjustable
Drying speed: 8m/min

Main functions
Remove dust, glove print, pressure mark, etc, dry thoroughly to get glass ready for laminating.

Main features
●Two parallel Fenner V belts are used for conveying.
●Sensors are installed at the inlet and outlet of the washing machine to detect the entry and output of the glass. When glass is not in and out within a certain period of time, pumps stop to save power.
●ashing room is designed as a sealed room to allow better control of water (avoid splashing out).
●The frame and all parts direct or indirect contact with water are made of stainless steel (material 304).

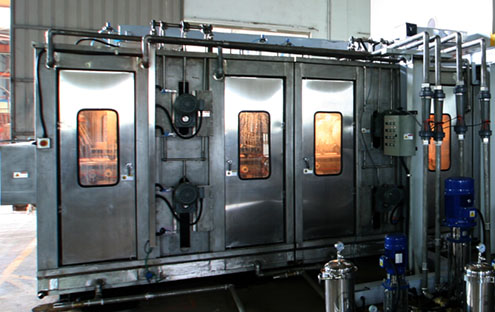

●There are Stainless steel doors (height 2.1mm) with windows (made of laminated glass) at both sides of washing shell which can be open to allow inspection, adjustment and maintenanc
Bended Glass Washing Machine(Brush Version)6

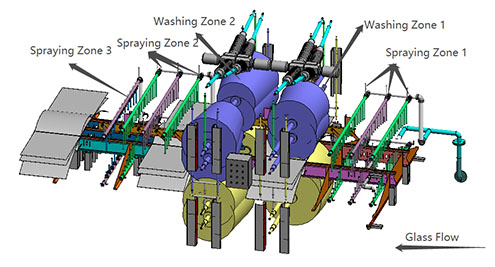

●First pair of brushes design: split to two section – Middle shaft and side cylindrical bristle–liftable and height adjustable
●Second pair of brushes design: split to two section – Middle shaft and side conical bristle–liftable and height adjustable

Bended Glass Washing Machine(Brush Version)7
●Final spray section directly connected to customer’s De-ionized water supply for rinsing before enter drying section.
●Drying section is provided with serval groups of drying air knives depending on dry speed.
●The drying section is equipped with a stainless steel sealed room. It is design as a whole to get better control of air pressure.
●There are stainless steel doors with windows (made of laminated glass) at both sides of drying shell which can be open to allow inspection, adjustment and maintenance

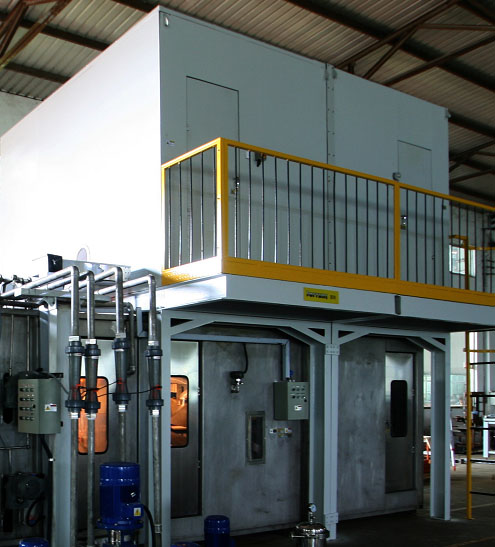

Bended Glass Washing Machine(Brush Version)8 ●The angle adjustment of air knives on both sides is controlled by motor, which is convenient for angle adjustment.
●Fan chamber includes air distribution room, fan room and air temperature adjustment device.

●Fan equipped with an inverter. According to the inflow of glass, the fan can be turned on or work in lower speed to reduce energy consumption.
●The air inlet of fan room is equipped with a pre-filter and a bag filter. Cleanliness of bag filter can be controlled by a differential pressure controller.
