Curved Mirror Glass Washing Machine

Short Description:

The type of glass washing machine is for washing small bent glass, especially for curved glass mirror.

It comes with brushes,high pressure spraying bars and air knife drying.

Main function is to remove glass powder, dust, finger print, pressure mark, water mark etc, dry thoroughly to get glass ready for coating.

Product Detail


Product Tags

Main technical specifications

Working width 600mm
Max glass size 500×500mm(LEL)or Diameter 500mm
Min glass size 300×200mm(LEL)or Diameter 300mm
Glass thickness 2-5mm
Working Height 900±50mm

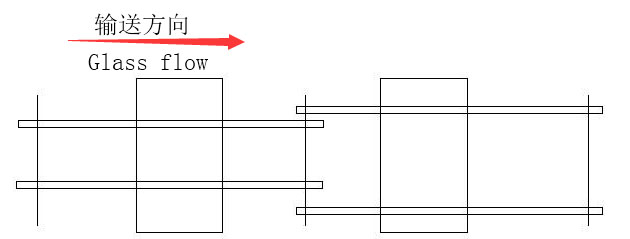

Glass Flow Cross feed / Wing down / Convex
Depth of bend ≤ 30mm
Max Cross Curvature ≤ 30mm
Conveyor speed 3-6m/min adjustable
Drying speed 6m/min

Main Features
The whole frame is made of stainless steel with protective covers which is made of stainless steel.
All parts direct contact with water is made of stainless steel 304 or polymer materials.
Conveying system is driven by V belts with press roller on the top.

Curved Mirror Glass Washing Machine1

The shaft end of the brush is made of stainless steel 304

The brush of upper brush shaft is cylinder-shaped

Curved Mirror Glass Washing Machine2

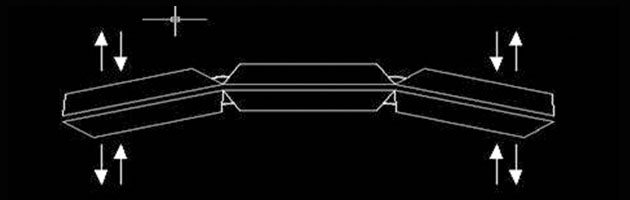

The brush of lower brush shaft is convex, close to glass radian shape

Curved Mirror Glass Washing Machine3

All air knives are made of stainless steel 304

Curved Mirror Glass Washing Machine4

Fan blower is placed in the sound proof chamber, and around the chamber there is noise-proof sponge.

There are sensors in input and output section to detect  glass in and out

There are Emergency stop button on both sides of output section

Fully automatic control


Curved Mirror Glass Washing Machine5

Curved Mirror Glass Washing Machine6
